HRBR Sleep Monitor V2.0 — Internal Manual

Comprehensive technical manual for the HRBR radar-based sleep monitoring system. Covers all dashboard features, classification algorithms, firmware behaviour, and deployment infrastructure.

1. System Overview

Architecture

The HRBR system consists of four main components connected via MQTT:

Component	Service	URL
MQTT Broker	HiveMQ Cloud (free)	*.s1.eu.hivemq.cloud
Backend + API	Railway	hrbr-v2-production.up.railway.app
Database	Railway PostgreSQL	(internal)
Dashboard	Cloudflare Pages	hrbr-kc.pages.dev
Device	XIAO ESP32C6	Seeed MR60BHA2 radar + BH1750 lux

Data Flow

1. ESP32 reads radar sensor (HR, BR, distance, presence, phase data) and lux sensor every ~1s
2. Applies EMA filtering and outlier rejection on-device
3. Publishes JSON to vitals topic every 5s (configurable) via MQTT over TLS
4. HiveMQ Cloud routes messages to all subscribers
5. Railway backend receives vitals, stores in PostgreSQL, runs sleep classification every 30s
6. Dashboard receives vitals via WebSocket (WSS:8884), displays live data and fetches history from Railway API

MQTT Topics

Topic	Direction	Description
vitals	Device → Cloud	Raw sensor readings (HR, BR, distance, presence, lux, phase data)
target	Device → Cloud	Radar target tracking (x, y, speed per detected person)
status	Device → Cloud	Device status (firmware, WiFi, intervals, uptime)
lwt	Device → Cloud	Last Will & Testament (online/offline status)
cmd/V005	Cloud → Device	Commands (ping, reboot, set_wifi, set_config)
sleep/V005	Backend → Cloud	Sleep stage classifications (every 30s)
sleep/V005/summary	Backend → Cloud	Sleep session summaries (on session end)

2. Dashboard Features

Header & Status Bar

Indicator	States	Meaning
Broker	Connected / Reconnecting / Disconnected	WebSocket connection to HiveMQ Cloud MQTT broker
Device	Online / Waiting / Offline / Stale	Whether the selected device is actively sending vitals
Device Selector	Dropdown	Auto-populated as devices are discovered via MQTT messages
Data Age	"Live" / "Xs ago"	Time since last vitals message. Turns red if >15s (stale)
Msgs	Counter	Total MQTT messages received this session

Device auto-discovery: When the dashboard connects to the broker, it subscribes to all topics. Any message containing a "board" field automatically registers that device in the selector dropdown. The first discovered device is auto-selected.

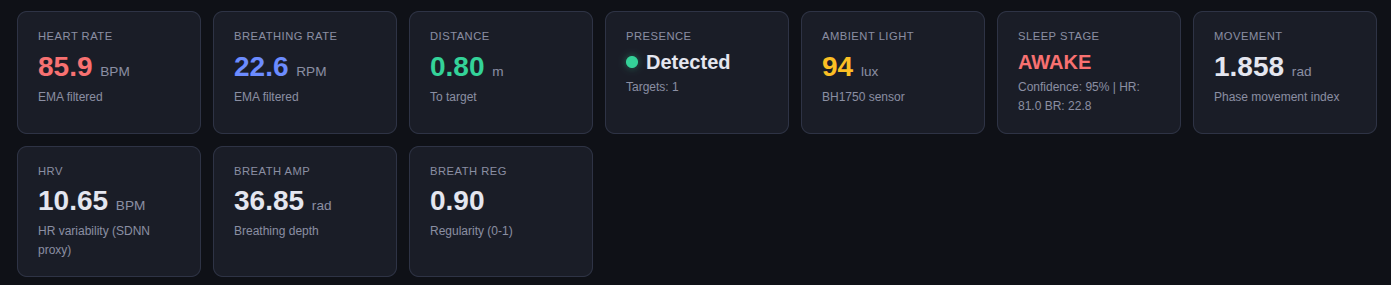

Vital Sign Cards

Card	Source	Description
Heart Rate	Firmware EMA	EMA-filtered heart rate in BPM (40–200 range, outliers rejected)
Breathing Rate	Firmware EMA	EMA-filtered respiratory rate in RPM (5–40 range)
Distance	Radar	Distance to target in meters (sensor returns cm, converted)
Presence	Radar	Green dot = person detected. Uses 3s timeout with latch logic
Ambient Light	BH1750	Ambient light level in lux (useful for sleep environment analysis)
Sleep Stage	Backend classifier	Current classified stage: AWAKE LIGHT DEEP REM
Movement	Backend	Phase movement index (std of detrended total phase, in radians)
HRV	Backend	Heart rate variability proxy (HR standard deviation over window)
Breath Amp	Backend	Breathing depth (peak-to-peak of detrended breath phase)
Breath Reg	Backend	Breathing regularity (autocorrelation, 0–1, 1 = perfectly periodic)

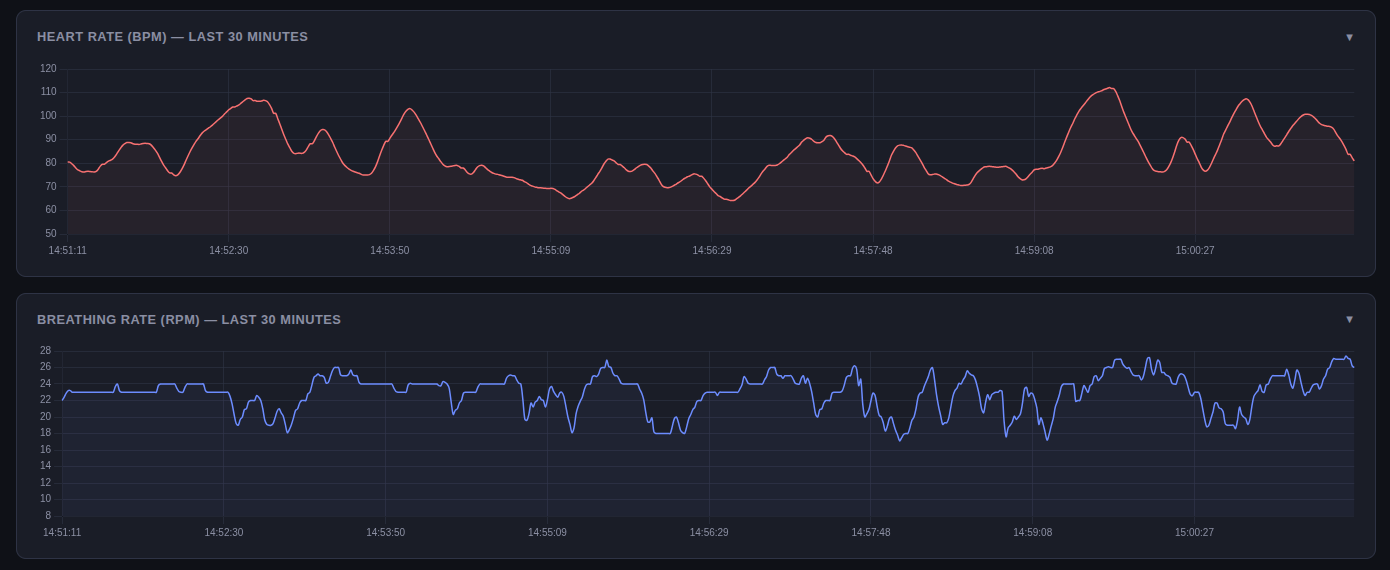

Real-Time Charts

The dashboard displays four main chart sections:

• Heart Rate (BPM) — Last 30 minutes of HR data
• Breathing Rate (RPM) — Last 30 minutes of BR data
• Distance & Target Position — Distance trend + scatter plot of radar target (x, y)
• Phase Charts — Total phase, breath phase, and heart phase from the radar

Charts are built with Chart.js and update in real-time as messages arrive. Each chart holds up to 360 data points (30 min at 5s intervals). During playback mode, charts are populated from stored data.

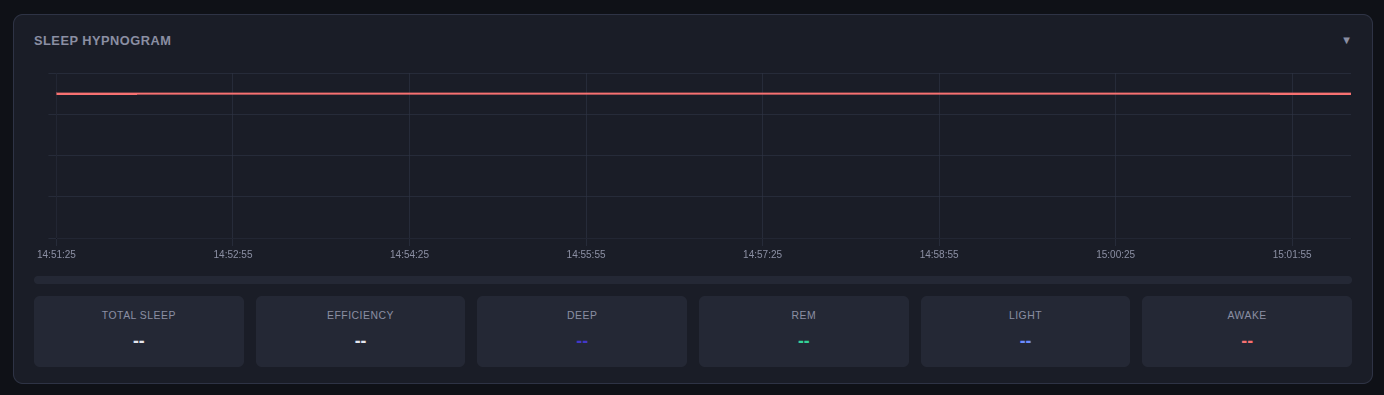

Sleep Stage Display

The sleep section shows:

• Current Stage — The most recent classification with confidence percentage
• Hypnogram — A scrolling chart showing sleep stage transitions over time (Awake=top, REM, Light, Deep=bottom)
• Feature Details — HR mean, BR mean, movement, and HR delta from baseline for the current epoch

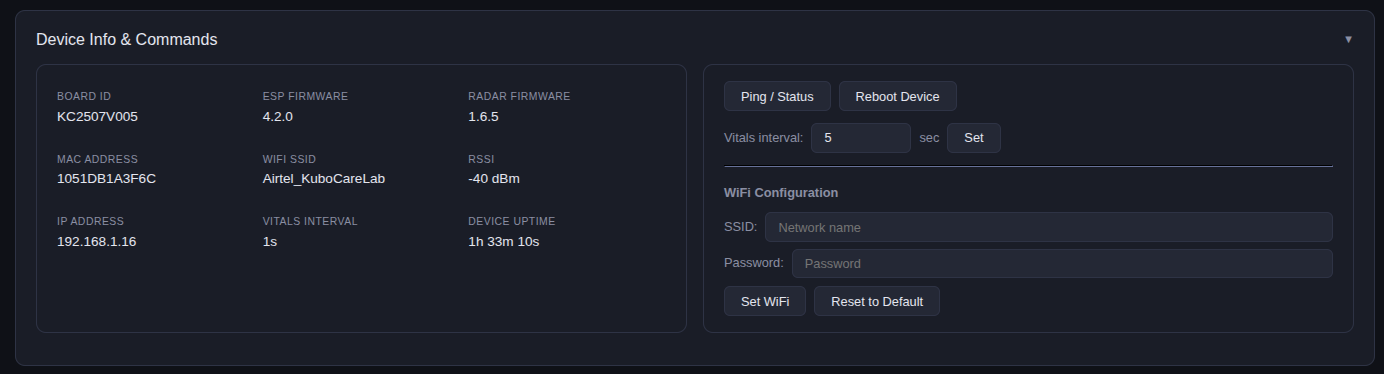

Device Controls

Ping / Status

Sends "ping" to the device command topic. The device responds with a status message containing firmware version, radar firmware, MAC address, WiFi SSID, RSSI, IP address, intervals, and uptime.

Reboot

Sends "reboot" command. Device publishes a {"status":"rebooting"} message, waits 3 seconds, then restarts. Requires confirmation dialog.

WiFi Configuration

Remotely change the device's WiFi credentials. Sends a JSON command:

{"set_wifi": {"ssid": "NewNetwork", "password": "pass123"}}

The device saves credentials to NVS (non-volatile storage), reboots, and attempts to connect. If the new network fails, it automatically reverts to the hardcoded default (Airtel_KuboCareLab).

Vitals Interval

Change how frequently the device publishes vitals (default: 5 seconds). Minimum: 1 second. Value is persisted in NVS across reboots.

{"set_config": {"vitals_interval": 3000}}

Clear WiFi

Resets device WiFi to default (clears NVS-stored credentials). Device reboots and connects to Airtel_KuboCareLab.

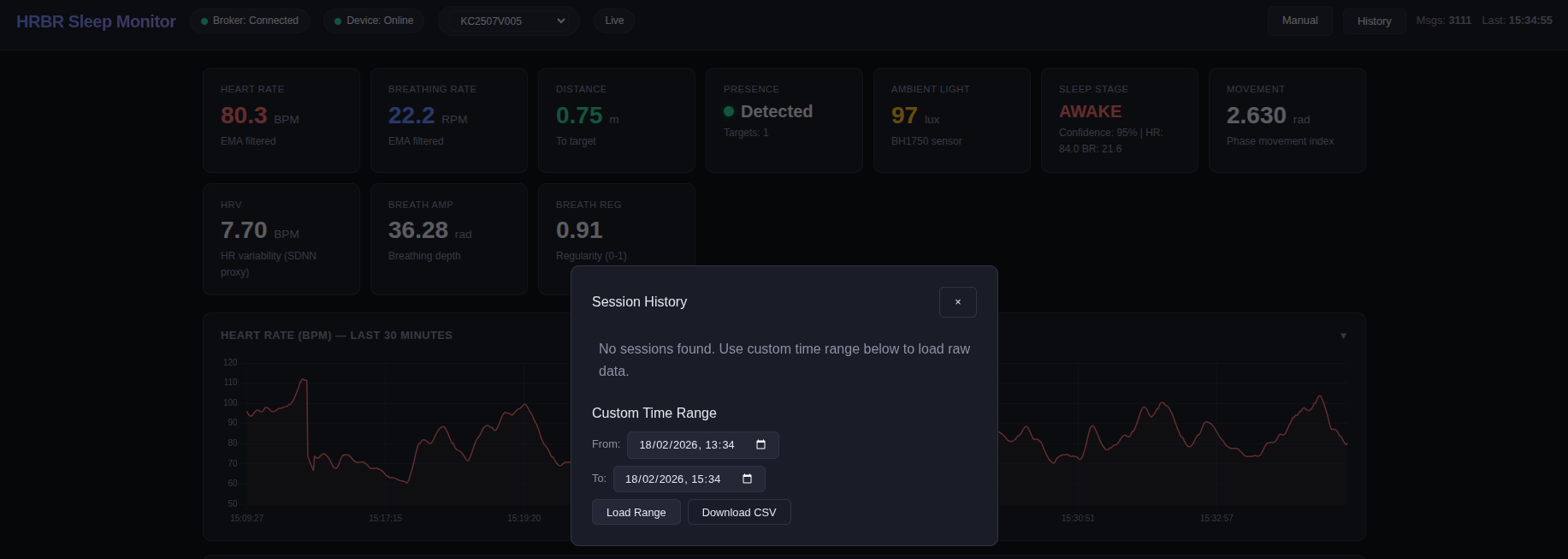

History & Playback

Click the "History" button to open the session browser. Two ways to load data:

Session Browser

Lists completed sleep sessions with duration, efficiency, and epoch count. Click a session to load its vitals and epochs into playback mode. Sessions are created automatically by the backend when sleep onset is detected.

Custom Time Range

Select any start/end time to load raw vitals data. Useful for reviewing data that doesn't fall within a detected sleep session.

Playback Controls

Control	Function
← Live	Exit playback and return to live data mode
▶ / ⏸	Play / Pause playback
Speed (1x–10x)	Playback speed multiplier
Scrubber	Drag to jump to any point in the loaded data
CSV	Download the currently loaded data as a CSV file

CSV Download

Two ways to download data as CSV:

1. From History modal: Set a time range → click "Download CSV". Downloads directly without entering playback mode.
2. During playback: Click the "CSV" button in the playback bar to download all loaded data.

CSV columns:

timestamp, datetime, board_id, hr, br, distance, presence, lux,
total_phase, breath_phase, heart_phase, uptime_ms

3. ESP32 Firmware (V4.2.0)

Sensors

Sensor	Model	Data	Interface
mmWave Radar	Seeed MR60BHA2 (60GHz)	Heart rate, breathing rate, distance, presence, phase data, target tracking	UART (Serial)
Light Sensor	BH1750	Ambient light in lux	I2C
RGB LED	NeoPixel	Status indicator	Digital (D1)

EMA Filtering & Outlier Rejection

The firmware applies Exponential Moving Average (EMA) filtering to smooth HR and BR readings before publishing:

EMA(t) = α × raw(t) + (1 - α) × EMA(t-1)

α = 0.2 (smoothing factor)

Before EMA, each reading is checked against valid bounds:

Vital	Min	Max	Action if out of bounds
Heart Rate	40 BPM	200 BPM	Reading discarded (not added to EMA)
Breathing Rate	5 RPM	40 RPM	Reading discarded

The EMA filter is initialized with the first valid reading and only publishes after both HR and BR have been seen at least once.

Presence Detection & Warmup

The firmware uses a latch-on / timeout-off pattern for presence:

• Latch ON: Any positive isHumanDetected() immediately sets presence = true
• Timeout OFF: Presence goes false only after 3 seconds without a positive detection (avoids flickering)

Warmup period: After presence is first detected, the device waits 60 seconds before publishing HR/BR values. This allows the radar to stabilize and the EMA filter to converge. Distance and phase data are published immediately.

LED Status Indicators

Color	Meaning
Red	Connecting to WiFi
Blue	Connecting to MQTT broker
Green	Fully connected (WiFi + MQTT) — normal operation
Yellow	Boot button held / sensor error
Purple	Status message published (response to ping)
Brief off-blink	Data published (vitals or target)

Remote Commands

The device subscribes to cmd/V005 and supports:

Command	Payload	Action
Ping	"ping" or "status"	Responds with full device status on status topic
Reboot	"reboot"	Reboots after 3s delay
Set WiFi	{"set_wifi":{"ssid":"...","password":"..."}}	Saves to NVS, reboots
Clear WiFi	{"clear_wifi":true}	Clears NVS WiFi, reverts to default
Set Intervals	{"set_config":{"vitals_interval":5000,"targets_interval":5000}}	Updates publish intervals (ms), saved to NVS

4. Algorithms (Backend)

The backend runs on Railway and processes incoming MQTT vitals to classify sleep stages. All algorithms run in Python on the server, not on the ESP32.

Data Buffer (Sliding Window)

A circular buffer holds the last 5 minutes (300 samples at 1Hz) of vitals data. Each sample includes HR, BR, distance, presence, lux, and three phase values from the radar.

Parameter	Value	Purpose
BUFFER_WINDOW_SEC	300 (5 min)	Sliding window size
MIN_SAMPLES_FOR_CLASSIFY	60 (1 min)	Minimum samples before classification runs
MIN_PHASE_SAMPLES	30	Minimum phase samples for phase-derived features

Outlier rejection is applied on buffer entry: HR outside 40–200 BPM or BR outside 5–40 RPM is set to null.

Feature Extraction

Every 30 seconds, the classifier extracts these features from the sliding window:

Traditional Features (from HR/BR/distance)

Feature	Formula	Used For
hr_mean	Mean of valid HR values in window	Baseline comparison, stage rules
hr_std	Std deviation of HR (HRV proxy)	Deep (<1.5 BPM) vs REM (>3.0 BPM)
hr_cv	Coefficient of variation (std/mean)	Regular (<4%) vs variable (>8%)
br_mean, br_std, br_cv	Same as HR but for breathing	Regularity assessment
movement	Std deviation of distance values	Fallback movement detection

Phase-Derived Features (from radar phase data)

The MR60BHA2 radar outputs three phase signals that capture sub-millimeter body movement:

Feature	Derivation	Meaning
phase_movement	Std of detrended, unwrapped total_phase	Overall body movement (sub-mm sensitivity). Higher = more movement.
breath_amplitude	Peak-to-peak of detrended breath_phase	Breathing depth in radians. Deeper breathing = higher value.
breath_regularity	Autocorrelation peak of breath_phase	0–1 scale. 1.0 = perfectly periodic breathing.

Baseline Calibration

The first 10 minutes (600 samples) of data are used to establish the subject's baseline (assumed awake):

• hr_baseline = mean of first 600 valid HR samples
• br_baseline = mean of first 600 valid BR samples

Once set, the baseline remains fixed for the session. If no baseline is available when classification starts, the current hr_mean is used as a temporary baseline.

The key derived feature is HR delta:

hr_delta = (hr_baseline - hr_mean) / hr_baseline

Positive delta means HR has dropped below baseline (sleeping). Negative means HR is above baseline (active/awake).

Sleep Stage Classifier

A rule-based classifier evaluates features in priority order. The first matching rule wins:

Classification Thresholds

Threshold	Value	Purpose
PHASE_MOVEMENT_THRESHOLD	0.5 rad	Above = significant body movement (AWAKE)
MOVEMENT_THRESHOLD	0.05 m	Fallback distance-based movement detection
HR_LIGHT_DROP_PCT	3%	Minimum HR drop from baseline for any sleep
HR_DEEP_DROP_PCT	10%	HR drop threshold for deep sleep candidate
HR_CV_REGULAR	4%	HR CV below this = very regular (deep)
HR_CV_VARIABLE	8%	HR CV above this = variable (REM)
BR_CV_REGULAR	6%	BR CV below this = regular breathing
BR_CV_IRREGULAR	10%	BR CV above this = irregular (REM)
BREATH_REG_DEEP	0.7	Breath regularity above = deep candidate
BREATH_REG_REM	0.4	Breath regularity below = REM candidate
BREATH_AMP_DEEP	1.0 rad	Breath amplitude above = deep breathing
HRV_DEEP_LOW	1.5 BPM	HR std below = very stable (deep boost)
HRV_REM_HIGH	3.0 BPM	HR std above = variable (REM boost)

Confidence Scoring

Each rule produces a base confidence that is boosted by confirming secondary features:

• AWAKE (movement): 60% base + movement magnitude (up to 95%)
• AWAKE (HR above baseline): 55% fixed
• DEEP: 65% base + BR regular (+5%) + breath regularity (+10%) + breath amplitude (+5%) + low HRV (+5%) = up to 90%
• REM: 55% base + BR irregular (+10%) + low breath regularity (+10%) + high HRV (+5%) = up to 80%
• LIGHT: 60–65% (default when sleeping but not deep or REM)

Session Management

The session manager detects sleep onset and wake transitions:

Event	Condition	Action
Sleep Onset	6 consecutive non-AWAKE epochs (3 minutes)	Creates a new session in the database. Session start time is backdated to 3 min ago.
Wake Detection	10 consecutive AWAKE epochs (5 minutes)	Ends the session, calculates summary, publishes to MQTT.
Presence Timeout	No presence for 5 minutes	Ends the session (person left the bed).

Session Summary

When a session ends, the backend calculates and stores:

• Sleep time = Light + Deep + REM minutes
• Efficiency = sleep_time / total_time × 100%
• Breakdown: deep_min, rem_min, light_min, awake_min
• Total epochs count

Breath Regularity Algorithm

Breath regularity measures how periodic the breathing pattern is using autocorrelation via the Wiener-Khinchin theorem:

1. Take the detrended breath phase signal (30+ samples)
2. Compute autocorrelation using FFT: ACF = IFFT(FFT(x) × conj(FFT(x)))
3. Normalize by zero-lag (variance)
4. Search for peak in lag range 3–8 samples (corresponds to 7.5–20 BPM at 1Hz)
5. Peak value (0–1) is the regularity score

A score of 0.7+ indicates very regular breathing (typical of deep sleep). A score below 0.4 suggests irregular breathing (REM or wakefulness).

5. Infrastructure

Cloud Services

Service	Provider	Tier	Purpose
MQTT Broker	HiveMQ Cloud	Free (100 connections, 10 GB/mo)	Managed MQTT with TLS + WebSocket
Backend	Railway	Free ($5/mo credit)	Python sleep service + FastAPI
Database	Railway PostgreSQL	Included	Vitals, epochs, sessions storage
Dashboard	Cloudflare Pages	Free (unlimited BW)	Static site hosting with global CDN

Configuration Files

File	Purpose
dashboard/config.json	Local dev config (MQTT ws://localhost:9001, API localhost:8081)
dashboard/config.production.json	Production config (HiveMQ WSS, Railway API URL)
scripts/.deploy-config	Saved deployment credentials (gitignored)
sleep_service/Procfile	Railway entry point: web: python sleep_service.py --api
sleep_service/nixpacks.toml	Railway build config (ensures libpq-dev for psycopg2)
docker-compose.yml	Local dev stack (Mosquitto + PostgreSQL + sleep-service)

Environment Variables

Variable	Default	Description
MQTT_BROKER	localhost	MQTT broker hostname
MQTT_PORT	1883	MQTT port (8883 for TLS)
MQTT_USERNAME	(empty)	MQTT auth username
MQTT_PASSWORD	(empty)	MQTT auth password
MQTT_USE_TLS	false	Enable TLS for MQTT
MQTT_CLIENT_ID	hrbr-sleep-service	MQTT client identifier
DEVICE_BOARD_ID	KC2507V005	Target device board ID
DATABASE_URL	(empty)	PostgreSQL URL; empty = SQLite fallback
PORT	8081	API server port (Railway injects this)

Deployment Commands

Full deployment (first time)

./scripts/deploy.sh

Quick dashboard redeploy (after code changes)

./scripts/redeploy-dashboard.sh

Local development

# Start local stack
docker compose up -d

# Verify
curl http://localhost:8081/api/health

# Open dashboard
cd dashboard && python3 -m http.server 8080

# Stop
docker compose down

Flash firmware

# Compile and upload
arduino-cli compile --fqbn esp32:esp32:XIAO_ESP32C6 firmware/HRBR_V4.0/HRBR_V4.0.ino
arduino-cli upload --fqbn esp32:esp32:XIAO_ESP32C6 --port /dev/ttyACM0 firmware/HRBR_V4.0/HRBR_V4.0.ino

# Monitor serial output
arduino-cli monitor --port /dev/ttyACM0 --config baudrate=115200

6. Troubleshooting

Dashboard shows "Broker: Disconnected"

• Check browser console (F12) for WebSocket errors
• Verify config.json uses wss:// and port 8884
• Confirm HiveMQ dashboard credentials are correct

Dashboard connected but no data

• Check device LED — should be solid green
• If device shows blue, MQTT connection is failing (wrong broker/credentials)
• Use HiveMQ Web Client to publish a test vitals message
• Check the device selector dropdown — device must be selected

HR/BR shows "--" but distance works

• Device may be in warmup period (first 60s after presence detected)
• Subject may be beyond 1.5m — vitals only publish when distance ≤ 1.5m
• Radar may not have calibrated yet — wait for "Baseline calibrated" in serial log

History shows "Failed to load sessions"

• Railway service may be sleeping — retry in a few seconds (auto-retry built in)
• Check browser console for network errors
• Use "Custom Time Range" with "Load Range" as an alternative to sessions

Railway returns 502

• Check Railway dashboard → Logs for Python errors
• Verify PORT environment variable matches the networking port setting
• Ensure DATABASE_URL is linked from the PostgreSQL service

Device keeps rebooting

• If the device can't connect to MQTT within 30s, it reboots automatically
• Check WiFi credentials — hold BOOT button for 3s during startup to reset to default
• Verify HiveMQ cluster is reachable from the device's network

Sleep classification shows only AWAKE

• Baseline may not be calibrated (needs 10 min of data)
• Subject's HR may not have dropped enough from baseline
• Check phase_movement — if consistently high, the classifier sees movement

---

HRBR V2.0 — KuboCare — Internal Use Only
